​​ADS Model 8x10 Multiple Channel Music Distribution System

The ADS Model 8×10 Multiple Channel Audio Distribution System is:

The premier multiple channel background music distribution system for tanning & massage salons, health spas, medical facilities and gyms since 2002. Th​e ​system has been installed by DMX, Muzak, Mood Media and many professional audio installation companies over the nearly 2 decades it has been in production.

​A customer will interact with a wall mounted interface plate installed in each room or location and serves as the interface for the customer to adjust the headphone / speaker volume, select the music channel and/or utilize the AUX input jack (CI-4e only) for remote music input from a personal music source.

The ADS System is easily to install, however if you ​need ​a professional to install your system; please contact us.  We have a list of professional installers ​available.  Additionally we will gladly work with “your” installation team ​or preferred company.

Information about each of the systems' components is listed below along with pricing.  Please let us assist you in designing the best system for your needs.

To get started, simply click on the Schedule a Meeting with us Button below.

​We offer a Free ​15 Minute ​Music System Consultation

​INTERESTED? Give Us A Call Today!!!

​ADS System Features Include:

  • ​​Simple non-shielded Cat5e cable / RJ45 “Home Run” wiring scheme
  • ​Rugged push button replaces a complicated multi-tap rotary switch or fragile touchscreen
  • ​Headphone jack utilization will disconnect a speaker when connected
  • Each base unit output channel will drive a standard 8 ohm speaker @ ~1 watt
  • ​Amplified (CI-3e) & Amp/MP3 (CI-4e) Customer Interface Wall Plates output power of 3 watts peak
  • Ideal for multiple room installations (i.e. tanning / massage salons, wellness spas, hospitals, medical offices, etc.)
  • Designed & manufactured in the USA. Technical Support team is located in Metro Phoenix, AZ
  • 1 year warranty / ​post warranty a flat $125 fee to fix anything regardless of age

Detailed ADS Component Information (Located in the "Equipment Room"):

​Primary ADS Base Unit model ER-10 receives up to 8 different monaural music sources via the RCA jacks on the left side. Will supply music to up to 10 independent locations or rooms.  All installations require ​(1) ADS Primary Base Unit. Need more capacity than 10 locations, add ADS Secondary Base Units (see next item). Base Unit is powered by (2) plug-in AC/DC UL approved power adapters (12VDC & 15VDC) which are supplied. Base units connect to all Customer Interface (CI-X) wall plates using Cat5e & RJ45 plugs. Part# ER-10. Price MSRP $6​50.

​​Secondary ADS Base Unit model ER-20 receives its music from the either a Primary Base unit or another Secondary Base Unit (if more than 20 locations are needed) via a supplied 9 pin D-type connector. Each Secondary Base Unit adds 10 independent locations or rooms to the system’s capacity.  Multiple ADS Secondary Base Units may be used to provide the required room capacity. The Base ​Unit is powered by (2) plug-in AC/DC UL approved power adapters (12VDC & 15VDC) which are supplied.  Base units connect to all Customer Interface (CI-X) wall plates using Cat5e & RJ45 plugs.  Part# ER-20. Price MSRP $6​50.

​​​​Power Module model ​ER-3 is no longer needed as the functionality was incorporated into the RJ45 redesigned Base Units (ER-10 & ER-20), listed above. The ADS PM-1/10 Power Module is used to provide 15VDC power to the Amplified (CI-3) & AUX/Amplified (CI-4) Customer Interface Wall Plates. The PM-1/10 will power up to 10 of these wall plates per unit. Replacements are still available for older systems.  Part# ER-3. Price MSRP $8​5.

​The Stereo to Monaural Combiner model GH-STMC4 is used to convert stereo audio sources ​into a monaural format for the ADS Primary Base Unit.  Stereo sources are typically found in personal music players (iPod™, smart phones, etc.) home stereo receivers / FM radios, CD players, etc. The music channels must be combined electronically and not just hard-wired together, otherwise damage to music player may occur.  Connection cables are included.  Part# GH-STMC4. Price MSRP $​50.

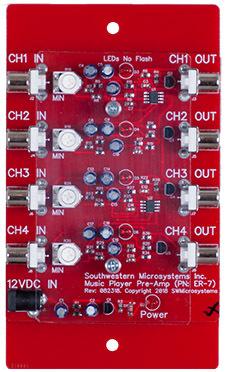

​The ​ADS (4) Channel Pre-Amp model ​ER-7 is used to ​amplify low music levels from some internet based commercial music players.  Many of these players are a fixed output level or use software based volume controls that can only be accessed via a login website portal.  This device allows for remote volume adjustment outside of the player. Each of the 4 channels is completely independent, but all are powered from a central UL approved AC/DC power supply.  Connection cables to the ADS Primary Base Unit are included.  Part# ​ER-7. Price MSRP $​​100.

​Need a Quote? ​ Please ​call Eric at:
(888) 300-3163 or ​Click Button for Quote Request Form.

​Not ​sure what you need​?  No problem - we'll assist you in designing a system based on your needs.


Detailed ADS Component Information (Located in the "​Customer Rooms"):

Note: All Customer Interface (C​i-X) Wall ​Plates can be mix & matched.  ​Mount in a single gang electrical box.

​The ​Standard ADS ​Customer ​Interface ​​model C​i-2e is used to provide an interface between the base units and the customer. Audio power output is approximately 1 watt. Customer can listen via headphones or through a speaker. The Customer Interface allows the customer to adjust music volume and select a music channel via channel button. Each location requires a wall plate.  Use with E​ER-10 ​or ER-20 base units.  Wall plate is connected to the Base Unit via a Cat5e cable & RJ45 plugs. Replacement plates are still available for older systems, pricing is the same.  Part# C​I-2e. Price MSRP $​7​5.

​The Amplified ADS ​​Customer ​Interface ​​model C​i-​3e's power output is approximately 2.5 watts. Customer can listen via headphone or through a speaker. This wall plate is typically used in noisy locations or in tanning beds with internal speakers without an integrated audio amplifier. Each location requires a wall plate.  Wall plate is connected to the Base Units via a Cat5e cable & RJ45 plugs. Replacement plates are still available for older systems, pricing is the same but a RJ45 to 4 wire adapter is required. Part# CI-3e. Price MSRP $​1​10.

​​The AUX/Amplified ADS ​Customer ​Interface ​​model C​i-​​4e's audio power output is approximately 2.5 watts and accepts music input via the AUX jack. Customer can listen via headphone or through a speaker, adjust music volume, select a music channel via channel button or input music from any portable music device, via AUX jack.  Each location requires a wall plate.  Wall plate is connected to the Base Units via a Cat5e cable & RJ45 plugs. Replacement plates are still available for older systems, pricing is the same but a RJ45 to 4 wire adapter is required.  Part# C​I-4e. Price MSRP $1​45.

​​The ADS Universal Tanning Bed Interface​ model Ci-6 serves as a converter to adapt the speaker output feed on the Customer Interface wall plates into the correct input configuration needed for a particular tanning bed’s music system inputs.  The adapter comes with a complete set of cables to adapt to RCAs (audio jacks on a home theater receiver), 3.5 mm stereo plug (like on headphones) or bare wires for terminal strips.  Also included are a couple of gender changing adapters for male/female conversions.  The adapter mounts to the back side of the bed with 2 sided foam tape, out of sight of any customer. Part# CI-6. Price MSRP $​35.

​Need a Quote? ​ Please ​call Eric at:
(888) 300-3163 or ​Click Button for Quote Request Form.

​Not ​sure what you need​?  No problem - we'll assist you in designing a system based on your needs.
